When searching for a budget automotive oscilloscope, the challenge lies in balancing affordability with reliable performance. The FNIRSI DST-210 stands out as the best overall choice, offering a solid mix of features and portability. For those on a tighter budget, the FNIRSI DSO152 provides basic functionality at a lower price point, though it sacrifices bandwidth. The main tradeoffs in this category involve limited bandwidth, fewer channels, and simplified interfaces—making it essential to choose a model aligned with your skill level and repair needs. Keep reading for a detailed breakdown of these options to find the best fit for your automotive diagnostics in 2026.
Get business pricing on garage and car supplies
- Business-only prices and quantity discounts
- Tax-exempt purchasing
- Multiple users, one account, clear invoices
Complete the kit
Key Takeaways
- Top picks balance affordability with essential features like bandwidth and signal clarity.
- Most budget scopes sacrifice some performance specs in favor of portability and ease of use.
- Dual- or multi-function units often combine multimeter, signal generator, and scope, but may lack depth in each area.
- Higher bandwidth and sampling rate are crucial for detailed engine diagnostics, but come at a slightly higher cost.
- Build quality and display clarity vary, impacting long-term usability and ease of troubleshooting.
| budget automotive oscilloscope | Sampling Rate | Display | Bandwidth | Battery |
|---|---|---|---|---|
| FNIRSI DST-210 3-in-1 10MHz Ha | 48 MSa/s | 2.8-inch color TFT | 10 MHz | 3000 mAh rechargeable |
| FNIRSI 2C53P 3-in-1 50MHz Osci | 250 MS/s | 4.3-inch touchscreen | 50 MHz | — |
| FNIRSI DSO-TC3 3-in-1 Handheld | 10 MSa/s | 2.4-inch TFT | 500 kHz | — |
| Handheld Digital Oscilloscope | 48 MS/s | 2.8-inch high-definition | 10 MHz | 1000 mAh, lasts about 4 hours |
| FNIRSI Upgraded 2-in-1 DSO-510 | 48 MS/s | 2.8-inch TFT | 10 MHz | — |
| FNIRSI 2C53T 3-in-1 50MHz 2CH | 250 MSa/s | 2.8 inch LCD | — | 3000 mAh, up to 6 hours |
| FNIRSI DSO-510 2-in-1 10MHz Ha | 48 MS/s | 2.8-inch LCD, 320*240 | 10 MHz | 1000mAh |
| FNIRSI DSO153 2-in-1 1MHz Hand | 5 MS/s | 2.8-inch HD LCD | 1 MHz | 1000 mAh |
| 3 in 1 Handheld Oscilloscope A | 200 MSa/s | Synchronous waveform | — | — |
| BSIDE Handheld Oscilloscope 3. | 48 MSa/s | 3.2-inch TFT color | 10 MHz | 1000 mAh |
| Handheld Digital Oscilloscope | 2.5MS/s | 2.8-inch TFT | 200KHz | — |
| 702S 2-in-1 Handheld Automotiv | 48MS/s | 2.8-inch IPS color screen | 10MHz | — |
| FNIRSI DSO152 Handheld Oscillo | 2.5MS/s | 2.8-inch HD LCD | 200KHz | 1000 mAh |
More Details on Our Top Picks
FNIRSI DST-210 3-in-1 10MHz Handheld Oscilloscope Multimeter DDS Generator
The FNIRSI DST-210 stands out for combining a 10 MHz oscilloscope, a digital multimeter, and a DDS signal generator into a single compact device. Compared with the FNIRSI 2C53P, it offers broader measurement functions in a portable form, making it ideal for on-the-go diagnostics. Its main tradeoff lies in the limited bandwidth of 10 MHz, which may not satisfy high-frequency needs, and the small 2.8-inch display could challenge detailed viewing. Nonetheless, its rechargeable battery and waveform saving features make it a strong choice for hobbyists and field technicians who need multiple functions in one device. Best for users who value portability and multi-functionality.
Pros:- Multi-functional device combining oscilloscope, multimeter, and signal generator
- Portable with rechargeable battery and intuitive interface
- Supports waveform saving and auto-ranging for efficient diagnostics
Cons:- Limited bandwidth of 10 MHz may restrict high-frequency testing
- Small screen size can hinder detailed analysis
- Complex features may require some learning curve for new users
Best for: Electronics hobbyists and automotive technicians who need an all-in-one testing tool on the move
Not ideal for: Professionals requiring high-frequency analysis above 10 MHz or detailed signal views due to small display
- Bandwidth:10 MHz
- Sampling Rate:48 MSa/s
- Max Voltage:400 V
- Display:2.8-inch color TFT
- Battery:3000 mAh rechargeable
- Measurement Types:Voltage, current, resistance, capacitance, frequency, diode, temperature
Our verdict“This device makes the most sense for professionals and hobbyists seeking versatile testing in a portable package, accepting some limitations in bandwidth and display size.”
FNIRSI 2C53P 3-in-1 50MHz Oscilloscope Multimeter DDS Signal Generator
The FNIRSI 2C53P offers a significant upgrade with a 50 MHz bandwidth and 250 MS/s sampling rate, making it suitable for more demanding electronic diagnostics than the DST-210. Its 4.3-inch touchscreen enhances usability compared to smaller displays, and the dual-channel design supports more complex waveforms. While the 50 MHz bandwidth is a step up, it still falls short for very high-frequency automotive signals, and the battery life of around 4 hours may require planning during extended sessions. This device is perfect for users who want detailed, multi-channel analysis without sacrificing portability, though it might be overwhelming for absolute beginners. Best suited for intermediate users needing more detailed signal analysis on the go.
Pros:- High sampling rate and bandwidth for detailed signal analysis
- Large, user-friendly touchscreen interface
- Combines oscilloscope, multimeter, and DDS signal generator in one device
Cons:- Limited to 50 MHz, not suitable for very high-frequency applications
- Battery life of 4 hours may be restrictive for prolonged use
- Complex features could pose a learning curve for newcomers
Best for: Automotive and electronics professionals requiring higher bandwidth and dual-channel capability
Not ideal for: Beginners or users needing ultra-high-frequency testing above 50 MHz, due to limited bandwidth
- Sampling Rate:250 MS/s
- Bandwidth:50 MHz
- Display:4.3-inch touchscreen
- Waveform Output Frequency:up to 10 MHz
- Battery Capacity:4000 mAh
- Measurement Counts:19999
Our verdict“This model makes the most sense for professionals who need detailed analysis with portability, accepting the bandwidth cap at 50 MHz.”
FNIRSI DSO-TC3 3-in-1 Handheld Oscilloscope with Transistor Tester and Signal Generator
The FNIRSI DSO-TC3 emphasizes transistor and component testing in a compact form, integrating an oscilloscope, transistor tester, and signal generator. Its 500 kHz bandwidth is quite limited compared to other models like the DST-210 or 2C53P, restricting high-frequency troubleshooting but making it ideal for basic electronics and transistor diagnostics. The small 2.4-inch display may challenge detailed analysis, and battery life details are not specified, which could be a concern for extended field work. This device caters to DIY electronics enthusiasts and tech students who prioritize versatility over high-frequency performance. Best for beginners or hobbyists focused on transistor testing rather than high-frequency signals.
Pros:- Combines multiple testing functions into a compact device
- Supports various transistors and sensors for comprehensive testing
- Automatic waveform detection simplifies operation
Cons:- Limited bandwidth of 500 kHz restricts high-frequency applications
- Small display size limits detailed viewing
- Lack of specified battery life may affect field use
Best for: Electronics hobbyists and students who need a portable transistor testing device
Not ideal for: Professionals needing high-frequency automotive diagnostics or detailed waveform analysis
- Bandwidth:500 kHz
- Sampling Rate:10 MSa/s
- Display:2.4-inch TFT
- Waveforms:Sine, square, pulse, triangle, ramp, DC
- Functions:Oscilloscope, transistor tester, signal generator
- Power:Built-in rechargeable lithium battery
Our verdict“This device is best for entry-level electronics testing or transistor troubleshooting where high-frequency precision isn’t critical.”
Handheld Digital Oscilloscope 2.8″ Portable Automotive Oscilloscope Kit, 10MHz Bandwidth/48MS/s, Auto/Normal/Single Trigger, DDS Signal Generator (14 Waveforms)
This handheld scope offers a straightforward 10 MHz bandwidth and 48 MS/s sampling rate, making it suitable for basic automotive and industrial testing, especially when portability is key. The 2.8-inch high-definition display provides clear visuals, and the included DDS signal generator with 14 waveforms adds versatility for signal testing. While the device supports multiple trigger modes and waveform storage, its bandwidth limits its effectiveness for high-frequency automotive signals. The battery life of around 4 hours is typical but may require recharging during extended work sessions. It makes sense for technicians who need a simple, portable scope for routine diagnostics without high-frequency demands. Best for entry-level automotive technicians or hobbyists seeking a lightweight, all-in-one testing kit.
Pros:- Portable, lightweight design with a clear high-definition display
- Includes a built-in DDS signal generator with multiple waveforms
- Supports multiple trigger modes and waveform storage
Cons:- Limited to 10 MHz bandwidth, unsuitable for high-frequency testing
- Basic sampling rate (2.5 MS/s in lower versions) may limit detail
- Small screen size could challenge detailed analysis
Best for: Automotive enthusiasts and technicians performing basic diagnostics on low-frequency signals
Not ideal for: High-frequency automotive or industrial applications requiring bandwidth above 10 MHz
- Bandwidth:10 MHz
- Sampling Rate:48 MS/s
- Display:2.8-inch high-definition
- Waveforms Output:14 waveforms
- Input Voltage:±400V
- Battery:1000 mAh, lasts about 4 hours
Our verdict“This scope is best for entry-level users needing simple diagnostics, accepting its bandwidth and display size limitations.”
FNIRSI Upgraded 2-in-1 DSO-510 Oscilloscope with 10X Probe
The FNIRSI DSO-510 offers a compact solution with a 10 MHz bandwidth and 48 MS/s sampling rate, combining an oscilloscope and signal generator in a small form factor. Its 2.8-inch TFT display provides basic waveform visualization, suitable for quick checks and simple diagnostics. Compared to larger models like the 2C53P, the DSO-510 is more portable but sacrifices bandwidth and advanced features, making it ideal for basic automotive or electronics troubleshooting in confined spaces. The battery lasts around 4 hours, which aligns with its portable design, but the limited bandwidth restricts its use for higher-frequency signals. This pick is suitable for those who prioritize size and convenience over high-frequency performance. Best for hobbyists or technicians needing a portable, straightforward testing device with limited but essential features.
Pros:- Compact and lightweight for easy transport
- Combines oscilloscope and signal generator functions
- Simple operation with auto measurement features
Cons:- Limited to 10 MHz bandwidth, restricting high-frequency testing
- Small display size can hinder detailed waveform viewing
- Battery life of 4 hours may limit extended use
Best for: Hobbyists and technicians performing basic diagnostics in tight spaces
Not ideal for: High-frequency automotive diagnostics or detailed waveform analysis
- Bandwidth:10 MHz
- Sampling Rate:48 MS/s
- Display:2.8-inch TFT
- Waveform Output Frequency:50KHz
- Voltage Measurement:up to 400V
- Size:99×68.3×19.5mm
Our verdict“This device suits hobbyists or field technicians needing a portable, no-frills scope for basic testing tasks, accepting its bandwidth and display constraints.”
FNIRSI 2C53T 3-in-1 50MHz 2CH Oscilloscope Multimeter DDS Signal Generator
The FNIRSI 2C53T stands out as the most versatile option in this roundup, combining a 50 MHz oscilloscope, multimeter, and signal generator into one device. Its high sampling rate of 250 MSa/s and waveform storage support detailed analysis, making it suitable for professionals and hobbyists alike. Compared to the FNIRSI DSO-510, which offers a lower bandwidth, this model handles a wider range of signals, though its small 2.8-inch display can make detailed viewing less comfortable. The multi-functionality means fewer devices needed, but the limited bandwidth and battery life are tradeoffs for portability. Overall, this pick makes the most sense for users who need a comprehensive tool without breaking the bank, but not for those working with very high-frequency signals.Pros:- Multi-functional device combining oscilloscope, multimeter, and signal generator
- High sampling rate and bandwidth for detailed measurements
- Supports waveform storage and export for comparison
Cons:- Limited to 50 MHz bandwidth, not suitable for very high-frequency applications
- Small LCD display can be challenging for detailed viewing
- Battery life of up to 6 hours may require frequent recharging
Best for: Electronics hobbyists and technicians seeking an all-in-one measurement device with moderate frequency capabilities
Not ideal for: High-frequency RF engineers or professionals requiring bandwidth above 50 MHz, as this device won’t meet those demands
- Oscilloscope Bandwidth:50 MHz
- Sampling Rate:250 MSa/s
- Record Depth:1 Kpts
- Max Voltage:400 V
- Display:2.8 inch LCD
- Battery:3000 mAh, up to 6 hours
Our verdict“This device is ideal for users needing a versatile, budget-friendly measurement tool for moderate-frequency work.”
FNIRSI DSO-510 2-in-1 10MHz Handheld Oscilloscope DDS Signal Generator
The FNIRSI DSO-510 offers a compact, handheld design suited for quick field measurements where portability is key. With a 10 MHz bandwidth and 48 MS/s sampling rate, it provides sufficient performance for basic signal analysis and troubleshooting, though it falls behind the FNIRSI 2C53T in measurement versatility. Its small 2.8-inch display limits detailed observation, but the long battery life and simple interface make it practical for on-the-go technicians. The maximum output frequency of 50 KHz suits simple signal generation tasks but won’t serve those needing high-frequency testing. This device is well-suited for hobbyists and field technicians who prioritize ease of use over high-frequency capabilities.Pros:- Compact, lightweight, and portable design
- Supports multiple waveforms and simple signal analysis
- Long battery life with Type-C charging
Cons:- Limited to 10 MHz bandwidth, unsuitable for high-frequency applications
- Maximum waveform output frequency of 50 KHz may be insufficient for some users
- Small display size can restrict detailed signal observation
Best for: Field technicians and hobbyists needing a portable, easy-to-use oscilloscope for basic diagnostics
Not ideal for: Engineers working on high-frequency RF circuits or detailed laboratory analysis, as bandwidth is limited
- Bandwidth:10 MHz
- Sampling Rate:48 MS/s
- Voltage Measurement:up to 400 V
- Waveform Output Frequency:up to 50 KHz
- Display:2.8-inch LCD, 320*240
- Battery:1000mAh
Our verdict“This device is best for those needing basic, portable signal testing in the field, with limited high-frequency capabilities.”
FNIRSI DSO153 2-in-1 1MHz Handheld Oscilloscope and DDS Signal Generator
The FNIRSI DSO153 excels as a compact, dual-function device for basic electronics work, offering a 1 MHz bandwidth and 5 MS/s sampling rate. Compared to the FNIRSI DSO-510, it’s more limited in both bandwidth and output frequency, but it compensates with a high-definition 2.8-inch display and easy calibration. Its portability makes it ideal for hobbyists and DIY enthusiasts who need a simple tool for low-frequency signals, although its maximum output frequency of 10 KHz restricts more advanced applications. The device’s straightforward operation and small size make it accessible, but for more demanding tasks, higher bandwidth models are preferable.Pros:- Dual-mode functionality as oscilloscope and signal generator
- Easy automatic calibration with one click
- High-definition display for clear readings
Cons:- Limited maximum output frequency (10 KHz), not suitable for high-frequency testing
- Battery life of about 4 hours may be restrictive for extended projects
- Basic features may not meet advanced measurement needs
Best for: DIY electronics hobbyists and beginners needing an affordable, portable oscilloscope for low-frequency signals
Not ideal for: Professional engineers or those working with high-frequency circuits, as bandwidth and output frequency are limited
- Bandwidth:1 MHz
- Sampling Rate:5 MS/s
- Time Base Range:500 ns – 20 s
- Maximum Output Frequency:10 KHz
- Display:2.8-inch HD LCD
- Battery:1000 mAh
Our verdict“This device suits beginners and DIYers looking for a simple, portable low-frequency testing solution.”
3 in 1 Handheld Oscilloscope Automotive Dual Channel 50MHz with Digital Multimeter and Signal Generator
This handheld device combines a 50 MHz dual-channel oscilloscope, a digital multimeter, and a signal generator, making it a practical choice for automotive technicians and field service. Its dual channels and high sampling rate of 200 MSa/s allow for detailed waveform analysis, comparable to the FNIRSI 2C53T, but with a focus on ease of use in automotive settings. The device’s Type-C charging and data transfer support add convenience, though its higher complexity may require familiarity with measurement tools. The bandwidth, while sufficient for many automotive diagnostics, limits its effectiveness for high-frequency electronics or advanced testing, making it ideal for quick diagnostics and troubleshooting.Pros:- Combines oscilloscope, multimeter, and signal generator in one device
- High sampling rate and dual channels for detailed analysis
- Type-C port supports fast charging and data transfer
Cons:- Complex features may require manual reading for proper operation
- Limited to 50 MHz bandwidth, not suited for high-frequency electronics
- Higher power consumption in high-speed mode
Best for: Automotive technicians and field engineers needing a multi-function device for vehicle electronics
Not ideal for: High-frequency circuit engineers or laboratory professionals requiring bandwidth above 50 MHz
- Measurement Type:Multimeter
- Maximum Bandwidth:50 MHz
- Sampling Rate:200 MSa/s
- Storage Depth:128K
- Display:Synchronous waveform
- Charging Port:Type-C
Our verdict“This device is well-suited for automotive diagnostics and field use where versatility and portability are prioritized.”

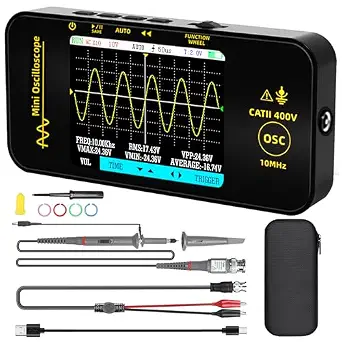

BSIDE Handheld Oscilloscope 3.2” TFT Display Portable Digital Oscilloscope 10MHz Bandwidth Automotive Oscilloscope 48MSa/s Sampling Rate Trigger Function Auto/Normal/Single
The BSIDE handheld oscilloscope offers a compact, user-friendly design with a 10 MHz bandwidth and 48 MS/s sampling rate, making it suitable for automotive troubleshooting and field diagnostics. Its 3.2-inch TFT color screen provides clear signal visualization, which is an advantage over smaller or monochrome displays. While the bandwidth limits its use for high-frequency electronics, it is more capable than lower-end models like the FNIRSI DSO153 for detailed automotive signals. The trigger functions and rechargeable battery add to its practicality, though it lacks advanced features for complex laboratory testing. This model makes sense for automotive techs needing quick, reliable measurements in the field.Pros:- Portable and lightweight for easy field use
- High sampling rate ensures accurate signal capture
- Clear 3.2-inch TFT display with multiple trigger modes
Cons:- Limited to 10 MHz bandwidth, restricting high-frequency work
- Battery life may be insufficient for prolonged use without recharging
- Basic features may not satisfy advanced testing requirements
Best for: Automotive repair technicians and hobbyists focused on vehicle electronics and field diagnostics
Not ideal for: High-frequency or laboratory engineers needing bandwidth above 10 MHz or advanced features
- Bandwidth:10 MHz
- Sampling Rate:48 MSa/s
- Display:3.2-inch TFT color
- Voltage Measurement:up to 400 V
- Trigger Functions:Auto, Normal, Single
- Battery:1000 mAh
Our verdict“This oscilloscope is ideal for automotive diagnostics and field measurements where portability and ease of use are priorities.”
Handheld Digital Oscilloscope Multimeter DSO152 2.8″ TFT Kit
This lightweight device stands out for its portability and ease of use, making it ideal for field technicians who need fast waveform capture without carrying bulky equipment. With a 2.5MS/s sampling rate and 200KHz bandwidth, it provides accurate results for common automotive signals, but its limited bandwidth makes it unsuitable for high-frequency applications. Compared to the 702S, which offers a broader feature set, the DSO152 excels in simplicity and battery life, though its smaller display and lower bandwidth restrict detailed analysis of complex signals. Its automatic parameter setting and high-voltage measurement capability up to 800VPP make it a practical tool for quick diagnostics or R&D testing on the go.
Pros:- Lightweight and highly portable for field use
- Fast sampling rate ensures accurate waveform capture
- Automatic parameter setting simplifies operation
- High voltage measurement up to 800VPP
Cons:- Limited to 200KHz bandwidth, not suitable for high-frequency signals
- Battery life of about 4 hours may require frequent recharging
- Small display size can hinder detailed analysis
Best for: Technicians needing a portable, budget-friendly oscilloscope for basic automotive diagnostics and quick troubleshooting
Not ideal for: Engineers working on high-frequency signals or detailed circuit analysis that require higher bandwidth and larger display
- Sampling Rate:2.5MS/s
- Bandwidth:200KHz
- Display:2.8-inch TFT
- Battery Life:4 hours
- Voltage Measurement:up to 800VPP
- Display Resolution:320*240
- Interface:Type-C
Our verdict“This device makes the most sense for mobile professionals who need quick, reliable measurements without the complexity of advanced features.”
702S 2-in-1 Handheld Automotive Oscilloscope Multimeter – 10MHz Bandwidth, 48MS/s Sampling Rate
The 702S offers a notable upgrade in measurement versatility, blending an oscilloscope and multimeter into a single device, making it ideal for professionals who handle both diagnostics and component testing. Its 10MHz bandwidth and 48MS/s sampling rate provide better signal fidelity than the FNIRSI DSO152, especially for automotive signals that require more detailed waveform analysis. The inclusion of T-RMS and temperature measurement enhances its utility for complex diagnostics, although its complex interface may challenge beginners. Compared with the FNIRSI DSO152, which is simpler but limited in scope, the 702S’s broad feature set suits those who need a multi-functional tool for varied applications, despite the higher learning curve and shorter battery life during intensive use.
Pros:- Combines oscilloscope and multimeter functions in one device
- High measurement accuracy with T-RMS and temperature testing
- Portable with a clear, color display for easy reading
- Suitable for automotive, industrial, and household electronics
Cons:- Complex for users unfamiliar with multi-function tools
- Limited to 10MHz bandwidth, not suitable for very high-frequency signals
- Battery life may diminish during extended use
Best for: Automotive and industrial techs who need a multi-purpose device with advanced measurement functions
Not ideal for: Beginners seeking an easy-to-use, single-purpose scope or users focused solely on high-frequency signals
- Display:2.8-inch IPS color screen
- Bandwidth:10MHz
- Sampling Rate:48MS/s
- Measurement Range (AC Voltage):0-750V
- Measurement Range (DC Voltage):0-999.9V
- Temperature Range:-20°C to 1000°C
- Power Source:Battery
Our verdict“This model is best for technicians who require a comprehensive, all-in-one testing device for diverse diagnostic tasks.”
FNIRSI DSO152 Handheld Oscilloscope 200kHz Bandwidth, 2.5MS/s Sampling Rate
The FNIRSI DSO152 offers a straightforward, affordable solution for basic waveform capture, making it suitable for hobbyists or beginners in automotive diagnostics. Its 200KHz bandwidth and 2.5MS/s sampling rate are comparable to the handheld options like the DSO152 Kit, but it lacks some of the automatic features and larger displays that make the Kit more user-friendly. The built-in rechargeable battery supports up to 4 hours of continuous use, providing decent field operation time for simple troubleshooting. While it can’t handle high-frequency signals or detailed analysis, its one-key auto setup simplifies measurements for those just starting out or performing quick checks.
Pros:- Portable and lightweight for easy field use
- High sampling rate for basic waveform capture
- Simple one-key auto setup for quick measurements
- Long battery life with rechargeable Type-C port
Cons:- Limited bandwidth restricts use for high-frequency signals
- Small display size may hinder detailed waveform analysis
- Basic features may lack the flexibility needed for complex diagnostics
Best for: Beginners or hobbyists who need a simple, portable scope for basic automotive or electronics testing
Not ideal for: Experienced technicians or professionals requiring high-frequency analysis or detailed waveform editing
- Bandwidth:200KHz
- Sampling Rate:2.5MS/s
- Display:2.8-inch HD LCD
- Probe Voltage Max:800 VPP / 280 V AC
- Battery:1000 mAh
- Interface:Type-C
- Dimensions:3.78 x 2.64 x 0.79 inches
Our verdict“This scope suits beginners or casual users who need a straightforward, budget-friendly device for basic testing tasks.”
How We Picked
Products were evaluated based on core criteria including bandwidth, sampling rate, ease of use, versatility, and build quality. Given the budget focus, price-to-performance ratio played a vital role, emphasizing features that deliver real diagnostic value without overspending. We prioritized models with straightforward interfaces suitable for automotive troubleshooting, while also considering durability and display readability. The ranking reflects a balance between affordability and capability, ensuring each option offers a clear advantage for specific user needs—from beginners to hobbyists and professional techs seeking a cost-effective tool.
Factors to Consider When Choosing Budget Automotive Oscilloscope
Choosing a budget automotive oscilloscope involves understanding your specific diagnostic needs and how your skills align with device features. While affordability is key, sacrificing essential specs like bandwidth or sample rate can limit your ability to troubleshoot effectively. Here are some factors to consider, beyond just price, to help you make an informed decision and avoid common pitfalls.
Bandwidth and Sampling Rate
Bandwidth determines the highest frequency signals the scope can accurately display, which is critical for automotive sensors and ignition systems. A scope with at least 10MHz bandwidth is suitable for most basic diagnostics, but higher bandwidth (up to 50MHz) offers more detailed waveforms. Sampling rate affects how accurately signals are captured; a rate of 48MS/s is generally enough for automotive use. Choosing a scope with insufficient specs may lead to missed faults or unclear signals, especially in complex engine diagnostics.
Ease of Use and Interface
For budget scopes, a simple interface with clear controls and a readable display is essential, especially if you’re a beginner. Touchscreen or intuitive button layouts reduce the learning curve and speed up troubleshooting. Avoid units with overly complicated menus that can frustrate quick diagnostics. Also, consider whether the scope offers features like auto-triggering or preset modes to simplify operation during real-time testing.
Portability and Build Quality
Since automotive work often requires moving around the vehicle, a compact and durable design matters. Look for lightweight models with sturdy construction that can withstand rough handling and temperature variations. A well-designed carrying case or protective housing prolongs the device’s lifespan and ensures it stays functional after frequent use.
Additional Features and Versatility
Many budget scopes include extra functions like multimeters, signal generators, or transistor testers. While these add value, they may compromise core oscilloscope performance. Decide which features are most useful for your typical tasks—adding a multimeter is helpful, but a scope with too many functions might be less focused or harder to operate. Prioritize models that meet your primary diagnostic needs without unnecessary complexity.
Value and Long-Term Reliability
Opting for a slightly higher price within your budget can often deliver better durability and more accurate readings. Check reviews for feedback on reliability over time and consider brands with a reputation for quality. Remember, a cheap scope that breaks quickly or provides inaccurate signals costs more in the long run than investing in a slightly more capable unit initially.
Frequently Asked Questions
Can I use a budget automotive oscilloscope for professional diagnostics?
While many budget scopes are capable of handling basic automotive diagnostics, they may lack the bandwidth, sampling rate, or precision required for complex or high-frequency signals. For professional use, it’s better to choose a model with higher specs and better build quality, but for hobbyist or occasional repairs, a budget scope can be sufficient if expectations are aligned with its capabilities.
What is the minimum bandwidth I should look for in a budget scope for engine diagnostics?
A minimum of 10MHz bandwidth is advisable for most automotive tasks, including ignition waveforms and sensor signals. If you plan to troubleshoot more advanced electronics, such as ECU signals or high-frequency sensors, opting for a scope with 20-50MHz will provide clearer, more detailed waveforms. Going lower than 10MHz generally limits the scope’s usefulness for practical automotive diagnostics.
Are handheld oscilloscopes reliable enough for serious troubleshooting?
Handheld scopes are designed for portability and quick diagnostics, making them suitable for fieldwork and simple repairs. However, their limited bandwidth and smaller displays might hinder detailed analysis compared to benchtop models. For ongoing or complex troubleshooting, a larger, more feature-rich scope might be necessary, but for basic checks, handheld units are a convenient solution.
Should I prioritize multiple functions like multimeter and signal generator in a budget scope?
Multifunction units can be tempting, especially at a low price, but they often compromise the core oscilloscope performance. If your primary goal is accurate waveform analysis, focus on a scope with good bandwidth and sampling rate. Additional functions are beneficial but should not come at the expense of fundamental oscilloscope quality if you need detailed diagnostics.
How important is display size and quality in a budget automotive scope?
Display size and clarity significantly impact ease of use, especially when interpreting waveforms or adjusting settings in tight engine bays. A larger, high-contrast screen makes it easier to see waveforms at a glance and reduces eye strain. While budget scopes may have smaller screens, choosing one with good resolution and brightness ensures better visibility during diagnostics, which saves time and reduces errors.
Conclusion
For most hobbyists and DIY enthusiasts, the FNIRSI DST-210 offers an excellent balance of features and affordability, making it the best overall choice. Beginners or those with simple diagnostic needs will find the FNIRSI DSO152 to be a straightforward, budget-friendly option. For those seeking a versatile, multi-function device without breaking the bank, the FNIRSI 2C53P provides added value. Advanced users or professionals on a tight budget should consider models with higher bandwidths and sampling rates, even if they cost slightly more, to ensure accurate and detailed diagnostics. Ultimately, your choice should align with your skill level, specific testing requirements, and budget constraints.
As an affiliate, we earn on qualifying purchases.Fall Picks
fall essentials
